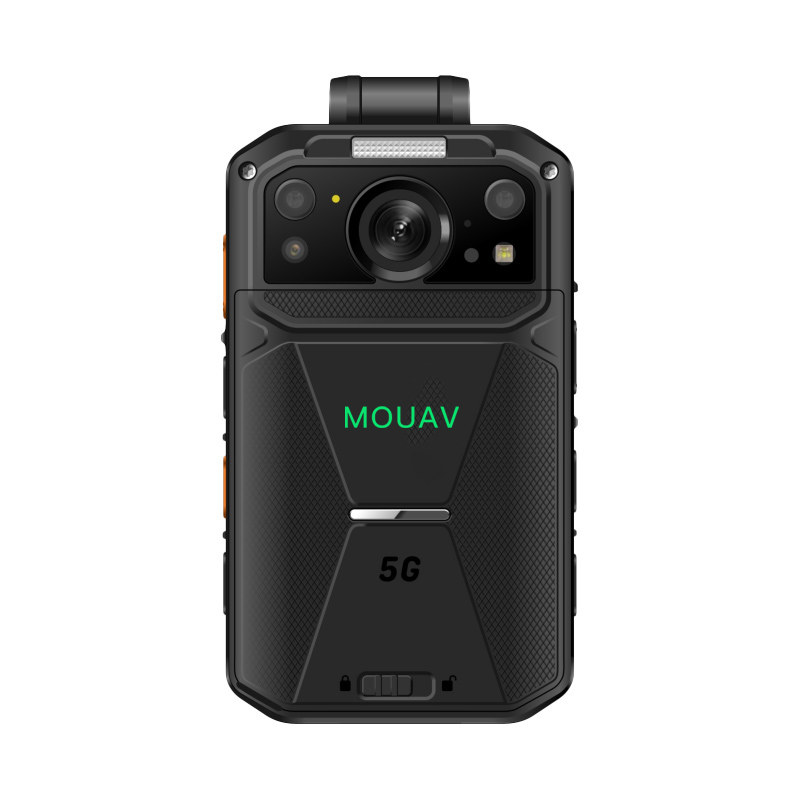

MOUAV MN316 Android 5G Body worn camera

1. Video resolution: adjustable in multiple levels, maximum 2K 30FPS high-definition recording;

2. Camera pixel: adjustable in multiple levels, supporting up to 40 million pixels;

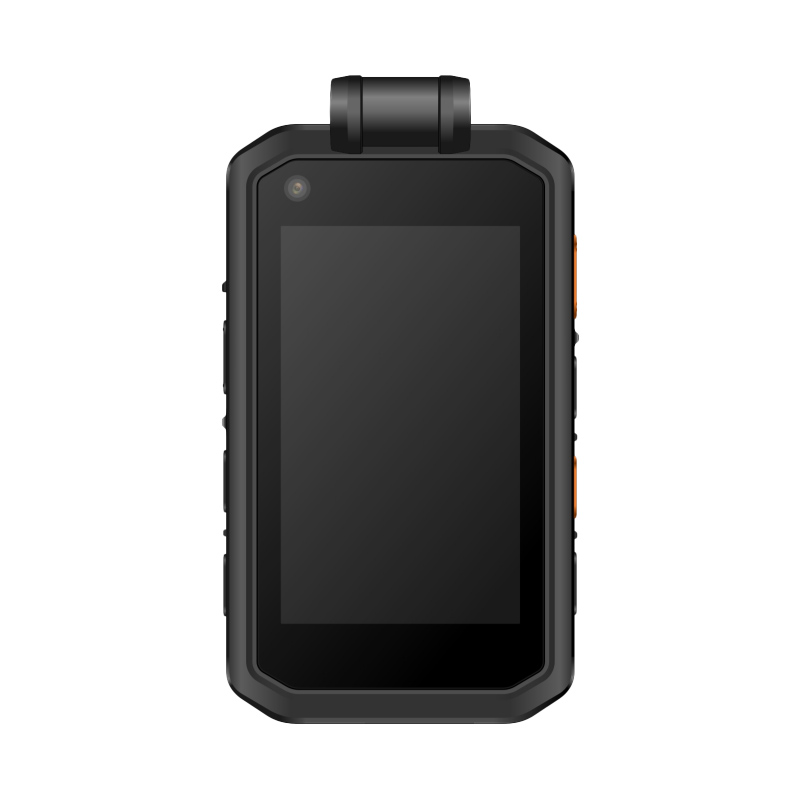

3. Screen: 3.1-inch IPS full view LCD high-definition display screen, multi-point capacitive touch screen, maximum brightness should be greater than or equal to 450cd/m2, color temperature should be greater than or equal to 6000

4. Lens: 3 front and rear cameras, front main camera, 400W large angle low distortion large target industrial grade camera;Horizontal angle 117 degrees, distortion less than 5%,

5. SIM card: Single Nona design;

6. Power on: Enter the APP after powering on, less than 25 seconds

7. Speaker: Speaker power not less than -102db

8. Speech recognition: iFlytek, supports voice control (optional);

9. Encryption chip: NARI T card (optional);

10. Bluetooth: Supports Bluetooth 5.0,

11. NFC: Supports NFC and can read ID information; NFC function

12. Distance test card type: NFCB.ISO14443-4B3.1 ≥ 2CM ID card protocol card

Card type:

NFCA.ISO14443-4A6.7≥ 2CM

Card type: NFCV.ISO156939.9 ≥ 3CM industrial type card

Card type:

NFCF.JISX6319-46.2≥ 4.5CM

Card type: Bus card/≥ 3CM/

Card type: ID card 2.9 ≥ 1.5CM

13. System platform: It can be equipped with mainstream visual command and dispatch systems in the market;

14. Satellite positioning: Supports single Beidou positioning, can choose single Beidou positioning B1I+B1C, cold start for 90 seconds (optional)

15. Satellite positioning: Single Beidou RTK can be selected,

B1+B2,

Precision sub meter level (optional)

16. RTK: Single Beidou RTK can be selected,

B1+B2,

Precision sub meter level (optional)

17. Positioning: optional BDS+GNSS+Galileo.

18. Cluster intercom: supports group intercom, single to single/single to multiple intercom modes;

19. Video intercom: Supports one-way and two-way video intercom from the law enforcement device to the platform, and supports one-way and two-way video intercom from the law enforcement device end;

20. Capture/Continuous Shooting: Supports capturing photos during the recording process and continuous shooting of photos;

21. Infrared night vision: 2 high-power infrared lights, infrared mode can be manually/automatically switched, and faces are clear within 3 meters;

22. Character overlay: All videos and photos are attached with information such as time, product number, user number, etc., which cannot be edited, providing strong evidence for investigation and evidence collection;

23. Motion detection: When there is object movement within the detection area, the device can automatically record video (optional);

24. Pre recording/Extended recording: Supports video pre recording, up to 30s (1080P);

25. Key marking: During recording, key files can be marked by pressing the corresponding button;

26. Gravity sensor: Equipped with an acceleration sensor, it can automatically start recording in case of collision in standby mode. In case of collision during recording, it can automatically save the recording file and re-enter recording mode (optional software development);

27. Quick operation: Supports one click operation, which can control functions such as camera, recording, voice transmission, playback, etc;

28. Storage: Built in TF card, 16G/32G/64G/128G/256G/512G;

29. Battery: 3000mAh replaceable rechargeable battery, charging time ≤ 5 hours. When a single battery is fully charged, it can record videos with a default resolution of more than 10 hours. When 4G is turned on, it can record videos for more than 4 hours. When replacing the battery, it will not power off for 5 minutes. Flight mode can standby for 100H;

30. Weight: 160g;

31. Size: 101.6 * 59.2 * 17mm;

32. Interface: Supports TYPE C interface, TYPE C standard headphone interface, can be connected to external mono intercom headphones, supports TYPE C charging and data transmission;

33. Appearance process: dual color mold process, integrated molding, full body waterproof and dustproof,

IP68，Fall prevention within 2 meters;

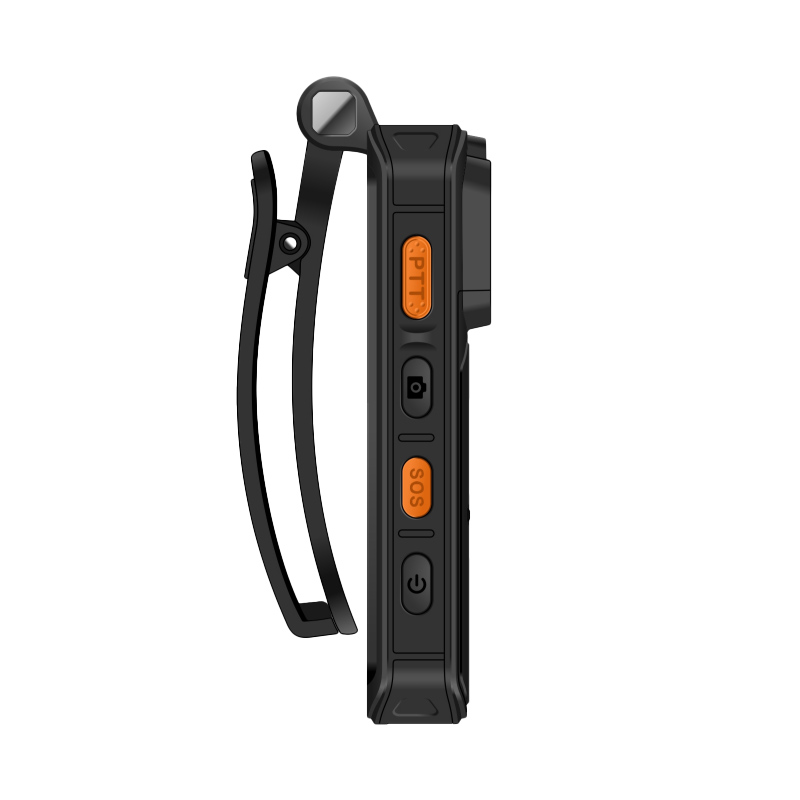

34. Wearing method: Integrated back clip design for wearing.

35. Reliability: Static Contact+-6KV/Air+-10KV

Surge test:VCHG:150V-300V/VBAT:150-300V；Falling: 1.5 meters, 6 sides, 12 times
