MOUAV MC310 Android 4G Body worn camera

★ Video resolution: Multiple adjustable levels, maximum 2K 30FPS high-definition recording

★ Lens: Front and rear 3 cameras, front main camera, wide-angle 110 °

★ SIM card: Dual Nona design

★ Battery: 3200mAh replaceable rechargeable battery, charging time ≤ 5 hours. When a single battery is fully charged, it can record videos with a default resolution of more than 10 hours. When 4G is turned on, it can record videos for more than 4 hours. When replacing the battery, it will not power off for 5 minutes. Flight mode can standby for 100H

Equipped with a command and dispatch integration platform, it can achieve real-time video, intercom, electronic fence, trajectory playback, cloud storage, SOS linkage alarm and other functions, supporting 28181,onvif,RTMP,Open Web SDK

1.Brief introduction

A newly developed 4G law enforcement recorder.

The product adopts a new design concept, with a simple appearance, lightweight and fashionable design, compact size, comprehensive functions, and stable performance, which can fully meet the needs of various industries and fields for on-site evidence collection and recording.

The front of the body can be customized with various types of text, logos

Logo、Patterns, etc., can be used for various law enforcement or commercial purposes.

The product adopts an 8-core high-speed processor and can be equipped with the Android 11.0 intelligent operating system. Through 4G wireless transmission, it achieves full network platform intelligent recording and 2K high-definition picture quality.

The product has comprehensively improved its security by assembling encrypted T-cards and various industry sensors.

Combined with the dual color mold process and integrated die-casting molding, it can achieve IP68 level deep waterproofing and long-term outdoor law enforcement wear, making it more stable and reliable.

2. Functional advantages

1. Video resolution: adjustable in multiple levels, maximum 2K 30FPS high-definition recording;

2. Camera pixel: adjustable in multiple levels, supporting up to 40 million pixels;

3. Screen: 3.1-inch IPS full view LCD high-definition display screen, multi-point capacitive touch screen;

4. Lens: 3 front and rear cameras, front main camera, wide-angle 110 °;

5. SIM card: Dual Nona design;

6. Speech recognition: iFlytek, supports voice control (optional);

7. Encryption chip: NARI T card (optional);

8. Bluetooth/NFC: Supports Bluetooth 5.0, NFC, and can read ID information;

9. System platform: It can be equipped with mainstream visual command and dispatch systems in the market;

10. Satellite positioning: Supports single Beidou positioning, optional BDS+GNSS+Galileo.

11. Cluster intercom: supports group intercom, single to single/single to multiple intercom modes;

12. Video intercom: Supports one-way and two-way video intercom from the law enforcement device to the platform, and supports one-way and two-way video intercom from the law enforcement device end;

13. Capture/Continuous Shooting: Supports capturing photos during the recording process and continuous shooting of photos;

14. Infrared night vision: 2 high-power infrared lights, infrared mode can be manually/automatically switched, and faces are clear within 3 meters;

15. Character overlay: All videos and photos are attached with information such as time, product number, user number, etc., which cannot be edited, providing strong evidence for investigation and evidence collection;

16. Motion detection: When there is object movement within the detection area, the device can automatically record video (optional);

17. Pre recording/Extended recording: Supports video pre recording, up to 30s (1080P);

18. Key marking: During recording, key files can be marked by pressing the corresponding button;

19. Gravity sensor: Equipped with an acceleration sensor, it can automatically start recording in case of collision in standby mode. In case of collision during recording, it can automatically save the recording file and re-enter recording mode (optional software development);

20. Quick operation: Supports one click operation, which can control functions such as camera, recording, voice transmission, playback, etc;

21. Storage: Built in TF card, 16G/32G/64G/128G/256G;

22. Battery: 3200mAh replaceable rechargeable battery, charging time ≤ 5 hours. When a single battery is fully charged, it can record videos with a default resolution of more than 10 hours. When 4G is turned on, it can record videos for more than 4 hours. It will not power off within 5 minutes when replacing the battery, and can standby for 100H in airplane mode;

23. Weight: 175g;

24. Size: 102.7x62.4x17.8mm;

25. Interface: Supports TYPE C interface, 3.5mm standard headphone interface, can be connected to external mono intercom headphones.

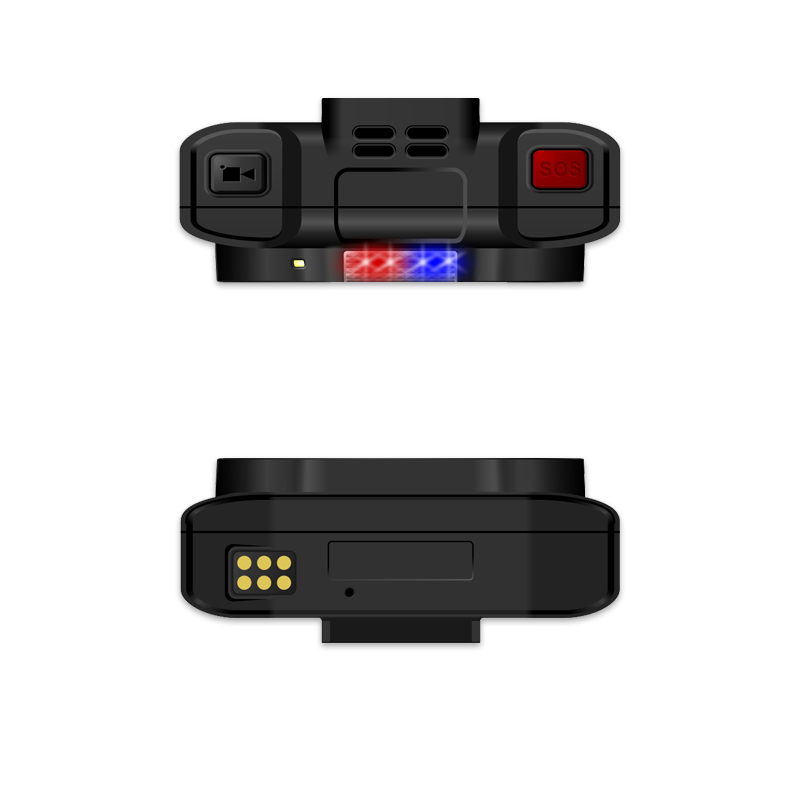

Bottom contact, supporting dedicated base charging and data transmission;

26. Appearance process: Dual color mold process, integrated molding, full body waterproof and dustproof,

IP68，

Fall prevention within 2 meters;

Wearing method: Supports various wearing methods such as shoulder clip, back clip, magnetic clip, pin clip, and shoulder strap, and supports installation of selfie sticks, tripods, car mounts, and more.

3.Product Parameters
