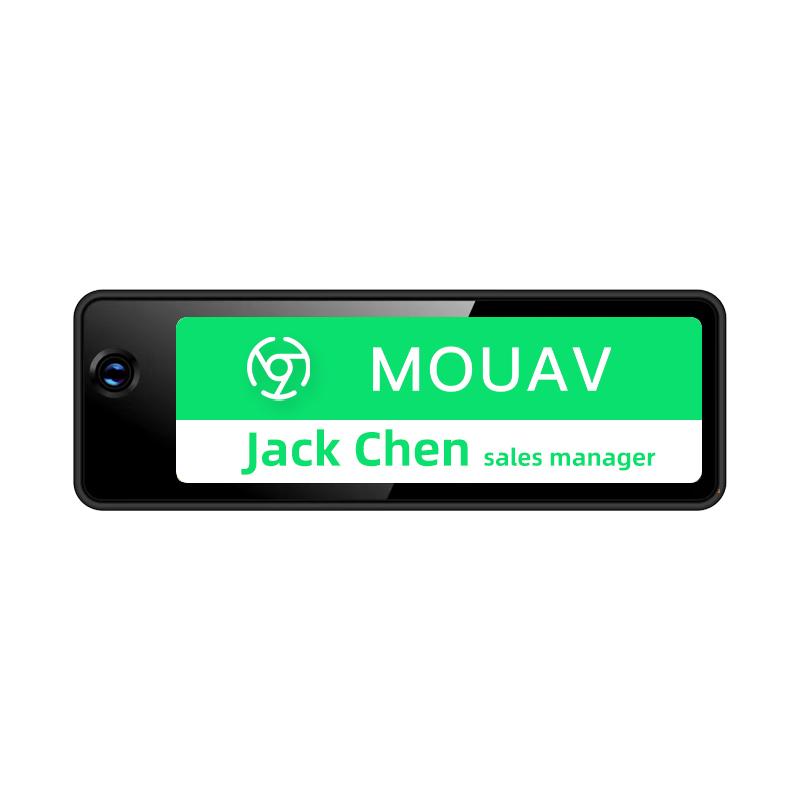

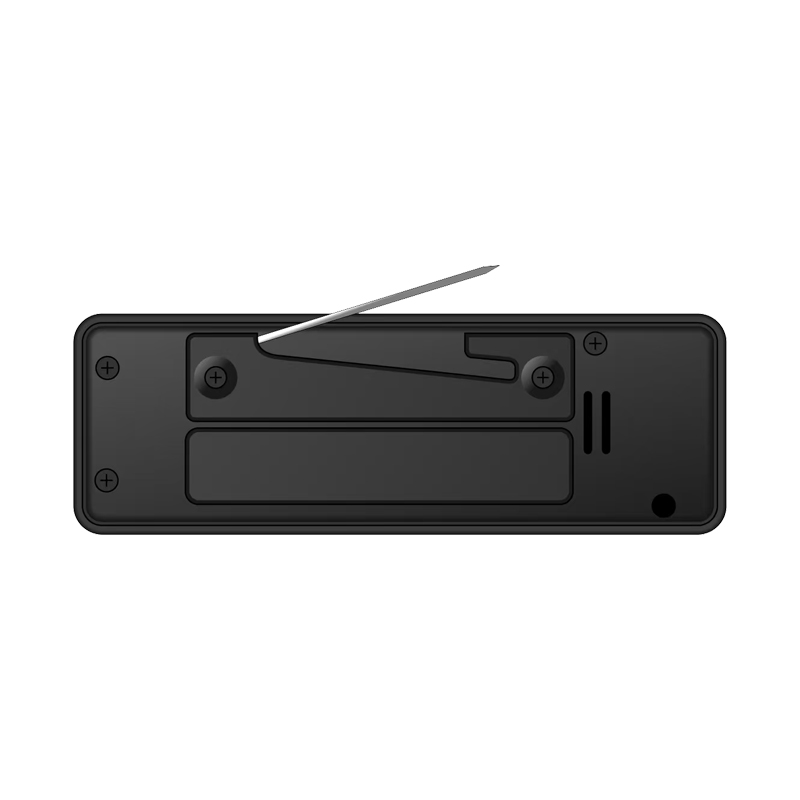

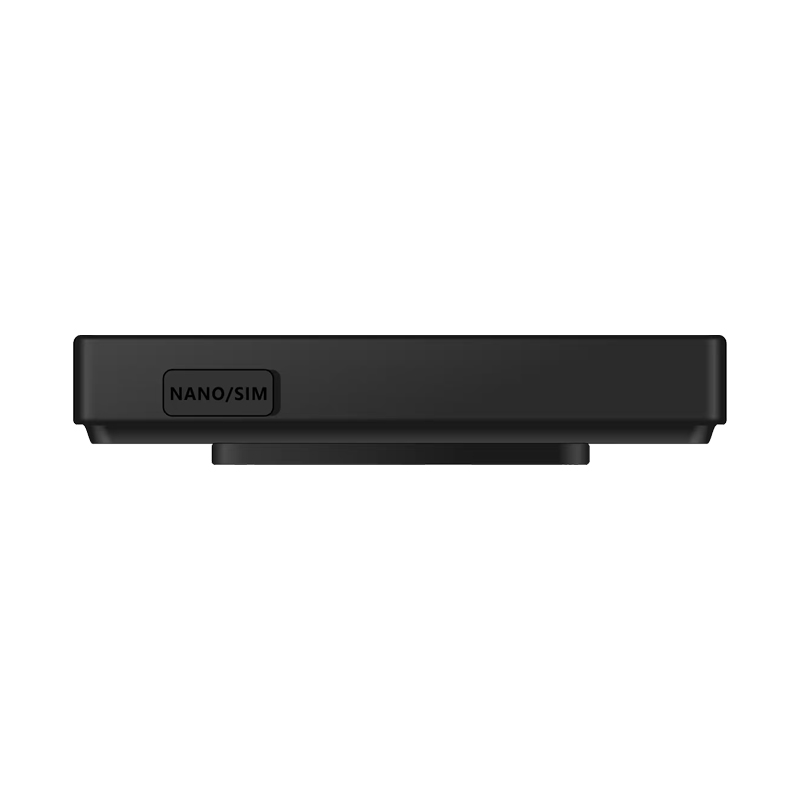

MOUAV X2 2K 4G body worn camera

Portable and Easy to Operate

• Compact size, measuring only 92.531.616.9MM and weighing 70g, making it easy to carry.

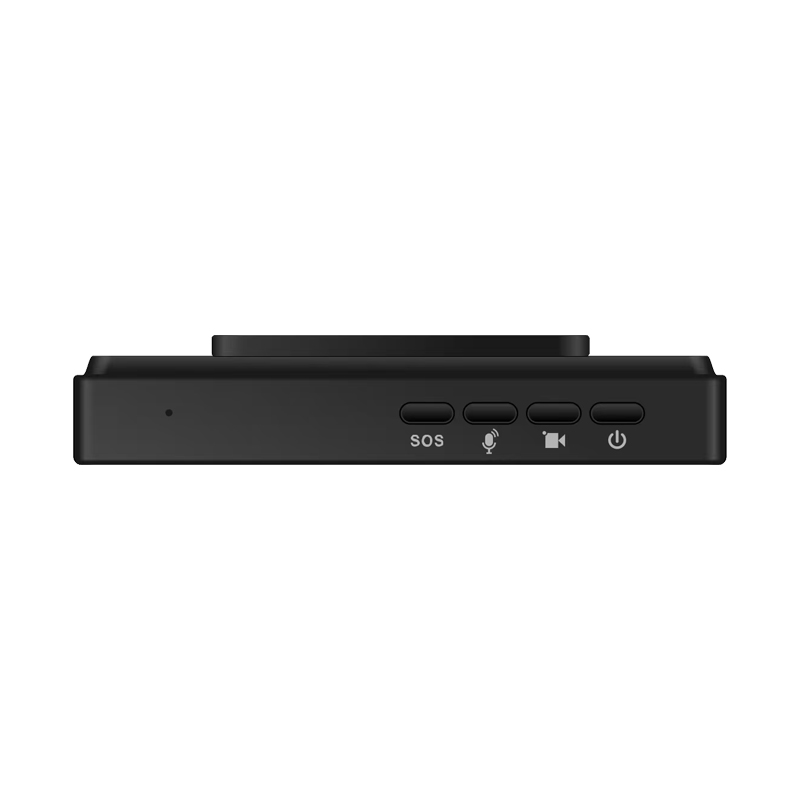

• Supports one-handed one-key operation, with side keys including power key, recording key, SOS key and recording key for convenient operation12.

HD Recording and Live Streaming

• Video resolution supports 480P, 720P, 1080P and 2K.

• Live streaming resolution also covers 480P, 720P, 1080P and 2K, meeting the needs of high-definition recording and real-time transmission.

• The camera is standard with 5 million pixels, and can be optional with 8 million pixels and 8 million pixels anti-shake. The camera function can record videos12.

Powerful Network and Data Capabilities

• 4G all-network access, supporting multiple network modes (GSM, WCDMA, FDD, TDD) and rich frequency bands.

• Supports Wifi (2.4+5G), compatible with 802.11ac/a/b/g/n protocol, with AP hotspot and client functions.

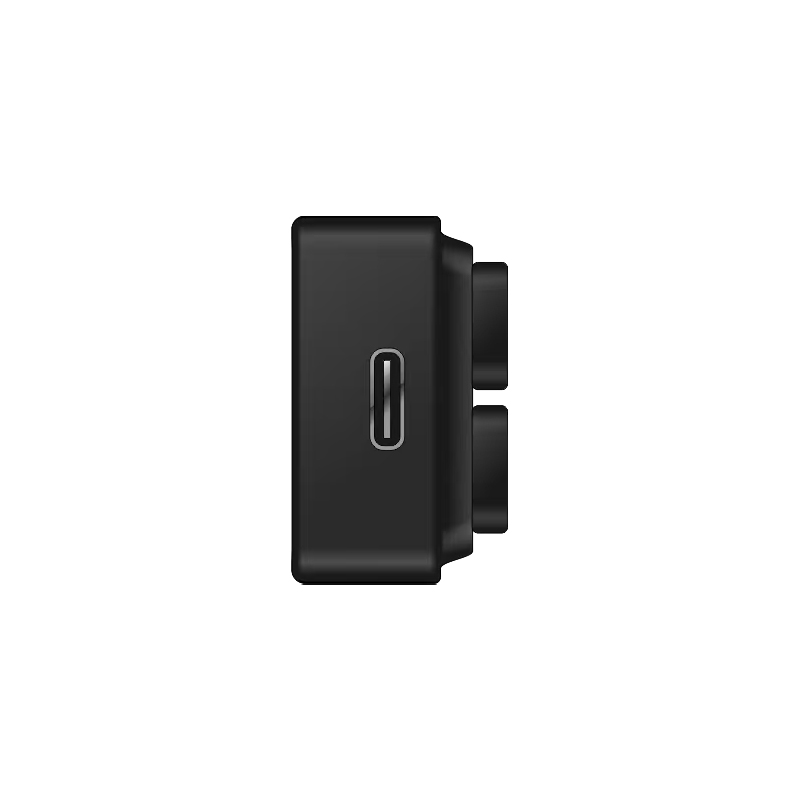

• Equipped with Type-C data interface, supporting 1A charging, data download, etc., and Bluetooth function is also available.

• The body memory has multiple configurations (standard 2+64, optional 4+64, 4+256), and supports Micro-SD card expansion up to 512G12.

Excellent Battery Life and Charging

• Built-in 1450mAh battery, with a standby time of ≥48h.

• Supports 1A fast charging, adopts direct charging mode, and the Type-C interface also supports charging.

Stable and Durable

• Protection level reaches IP65, which can cope with certain dust and water splashes.

• Can withstand 1.5-meter free fall, adapting to complex on-site environments.

• Wide working temperature range, from -30℃ to 55℃, and working humidity less than 90%, adapting to various harsh environments2.

Accurate Positioning

• Supports single Beidou positioning, and can also be optional with GPS positioning, meeting the positioning needs in different scenarios.

Strong Performance

• Equipped with Android 12 operating system, and the main control platform is MT8786, octa-core, 2.0GHz, ensuring smooth operation1.

Practical Functions

• Equipped with SOS emergency alarm function, and the device can issue an alarm prompt by pressing the corresponding key.

• The working indicator light has clear status: green when standby (not recording, taking photos or recording), red when recording and taking photos, yellow when recording, and green light flashing when the battery is low, making it easy to know the device status.

• Supports headphones with type-C interface

  X2 4G body worn camera.pdf
